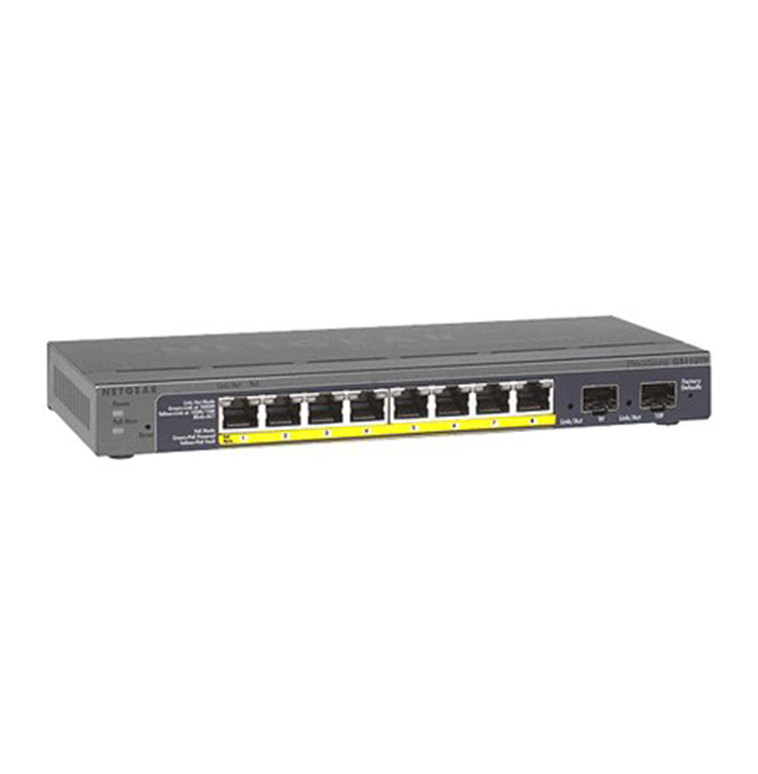

Netgear ProSafe GS110TP Switch

The GS110TP is designed for customers who need a low port density solution with the combination of Gigabit speed and PoE capability. The GS110TP comes with 8 dedicated 10/100/1000 Mbps copper ports to connect to your end devices and two additional Gigabit Fiber ports for uplinks with greater distance. With PoE capability on all 8 copper ports, the GS110TP can automatically detect PoE on the end devices and dynamically manage power assignments and priority. It is capable of delivering up to 15.4W of power per port, up to a maximum total of 46W across all connected PoE devices, and network connectivity concurrently across a single Ethernet cable, to power devices such as wireless access points, IP phones and IP cameras, providing flexibility and ease of deployment to your network.

The GS110TP comes with a comprehensive set of features, such as enhanced VLAN and QoS, access control lists (ACL), 802.1x port authentication (MD5), rate limiting and IGMP snooping and many more, to provide businesses with networks that are geared for growth while ensuring performance and reliability. Both an intuitive Web-browser GUI interface and Smart Control Center (Windows PC required), offer simple Smart Managed Switch management, making it a snap to monitor switch performance, configure ports, even set up port trunks, VLANs, and traffic prioritisation. With the fanless design and compact form factor, the GS110TP offers quiet operation and is suitable for deployments in any type of environment, especially the ones which are sensitive to noise.

PoE Power Management:

GS110TP offers useful PoE power management features to help you better control and monitor your power resource. The PoE timer can help turn off the PoE ports during certain times of the day so that your network can be more secure as well as energy efficient. It can also set prioritisation on power usage so that specified ports are always guaranteed to get the power first if total power required exceeds the total power budget. The power will be assigned to the PoE ports dynamically depending on the reported power class from each of the individual network devices, allocating the required power (up to 15.4W) per port, starting with the lowest port, until the total power budget of 46W is met, or until there is no longer sufficient remaining PoE power to power the next device/port, based on that connected device’s reported PoE power class. The PoE LED on the front panel will light up if the PoE usage is reaching the threshold (46W total PoE power across all connected devices), meaning that insufficient PoE resource is left for powering up additional ports.

Netgear Green:

• Up to 70% power savings compared to the non-Green version
• Auto power-down mode saves energy when port is not in use
• Cable length detection reduces power usage when network cable is shorter than 10 meters

Advanced Quality of Service (QoS):

Priority queuing ensures high-priority traffic gets delivered efficiently, even during congestion from high-traffic bursts. Companies implementing network telephony or video conferencing, for example, need to be able to prioritize such voice and video traffic and other real-time applications over less latency-sensitive traffic to ensure reliability and quality. The ability to prioritize traffic ensures quality of latency-sensitive services and applications despite increasing traffic loads. The GS110TP provides an extensive set of QoS features:

• 802.1p-based prioritisation
• Layer 3-based prioritisation
• Rate limiting

Advanced Security:

• The GS110TP provides more robust security. This includes:
•  802.1x for authentication (MD5)
•  ACL filtering to permit or deny traffic based on MAC or IP addresses
